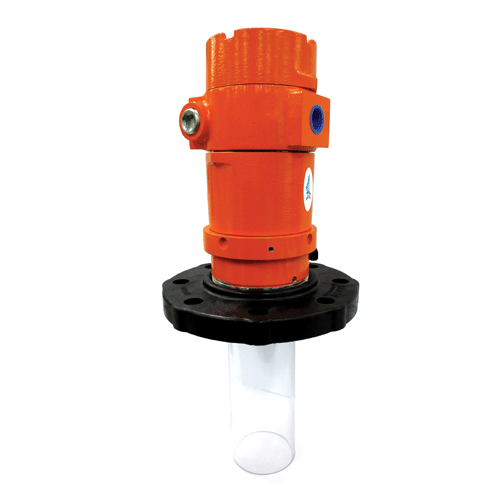

OptioLaser S200
OptioLaser S200

cranemaster

작동원리

The OptioLaser S200 series offers an optional visible alignment laser, RS232 and 4-20mA outputs. It uses an infrared semiconductor, GaAs laser diode. A light energy wavelength of approximately 905 nanometers, with a beam divergence of 3 milliradians (equal to 3ft at 1000ft), travels to the material being measured.

Any solid or liquid target in its path, will reflect back a certain percentage of the emitted energy. The OptioLaser calculates the distance, based on the transit time the laser pulse travels to the material and back.

주요 적용 분야

  • Asphalt
  • Brewing
  • Cement
  • Chemical
  • Dairy
  • Edible oil
  • Fertilizer
  • Food & Beverage
  • Glass
  • Mining & Metals
  • Oil & Gas
  • Packaging
  • Paint
  • Paper
  • Pharmaceutical
  • Plastics
  • Power Generation
  • Refining
  • Semiconductor
  • Sugar
  • Textile
  • Water & Wastewater
